Why Parametric CAD Needs More Than Dimensions

“Keep this distance unchanged” sounds like a complete parametric instruction.

In a real assembly, it may not be enough. The distance might represent a minimum clearance, a nominal offset, a machining allowance, or the position of a functional datum. Those meanings can require different behavior when the design changes.

A parameter becomes more useful when its role is explicit.

A clearance is not a positioning dimension

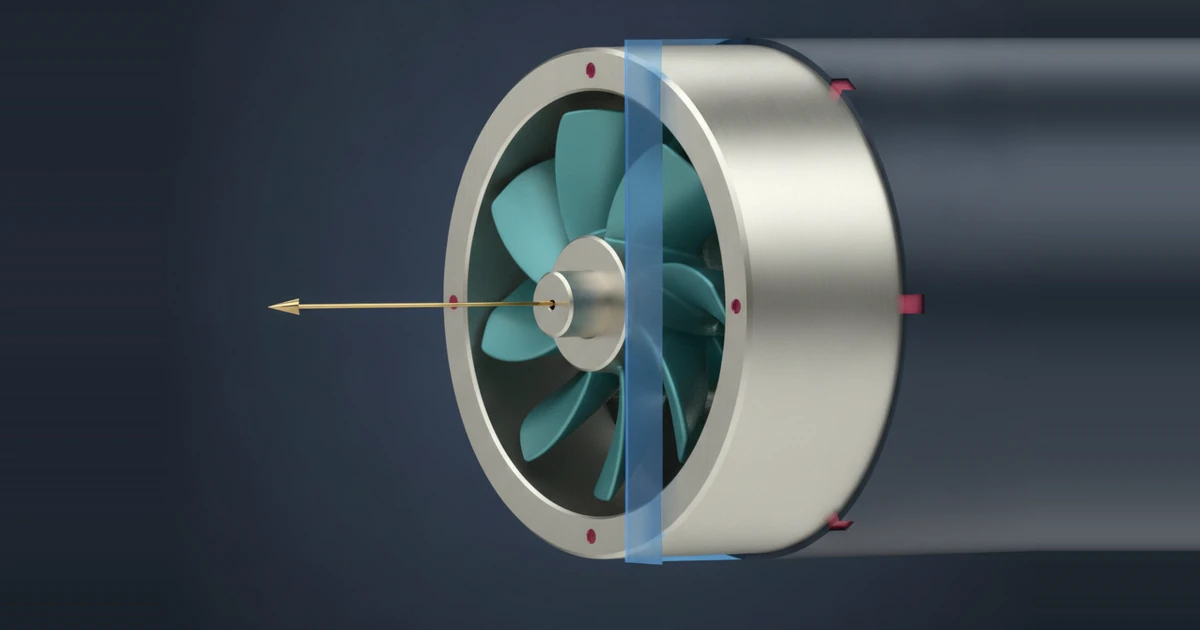

Imagine a rotating impeller inside a housing. One distance locates the impeller relative to a datum. Another specifies a required clearance from the housing.

Increasing the housing size need not move the impeller. Moving the datum need not preserve the previous clearance automatically.

If both relationships are stored as unrelated numerical distances, an edit can preserve the numbers while violating the intended assembly behavior.

Distinguish a target from a bound

A nominal wall thickness and a minimum allowed wall thickness are different statements. Setting a nominal value does not prove that every local region satisfies the minimum after a complex shape edit.

A useful model would distinguish the driving design parameter from the check applied to the resulting geometry.

The same distinction appears in envelope constraints: a component can be positioned by one set of references while a separate condition limits where it may extend.

Give the engineer control over ownership

Suppose an interface dimension is driven by a neighboring component. The receiving definition should make that dependency visible.

Can the engineer override it? Is an override local to one instance? What happens when the source reference disappears?

Without clear ownership, a parameter can become a surprising route through which edits propagate across an assembly.

Handle conflicts as engineering decisions

An edit might make the requested clearance incompatible with a fixed outer envelope. The evaluator should explain which conditions conflict rather than choosing one silently.

A proposed interface could offer alternatives: reduce the internal component, enlarge the permitted envelope, or revise the clearance requirement. Selecting an alternative would remain an explicit engineering action.

The research challenge is not to attach more labels to dimensions. It is to preserve enough meaning that an edit, a failed check, and a downstream decision can be understood.

For NeuroCAD, a bounded demonstration would need to show these different parameter roles behaving correctly through changes. A dimensioned sketch alone would not establish that semantic behavior.

Research note: These proposed workflows do not establish current NeuroCAD feature availability, performance, or engineering qualification.
